QSC is Performance Audio & Video’s first choice for Premium Audio Systems including speakers, amplifiers and the ultra powerful Q-SYS Platform. QSC offers an array of speakers to fit any application you can imagine. Below is an outline of their speakers designed for a variety of applications such as Fitness Centers, Conference Spaces and general background audio.
Premium Speakers: AcousticDesign Series
AcousticDesign ceiling loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience.
PAV’s Favorite Speakers: AD-C6T
- Consistent tonal characteristics across the entire AcousticDesign family in both surface or ceiling applications
- Directivity Matched Transition (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction voicings available via Q-SYS
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online

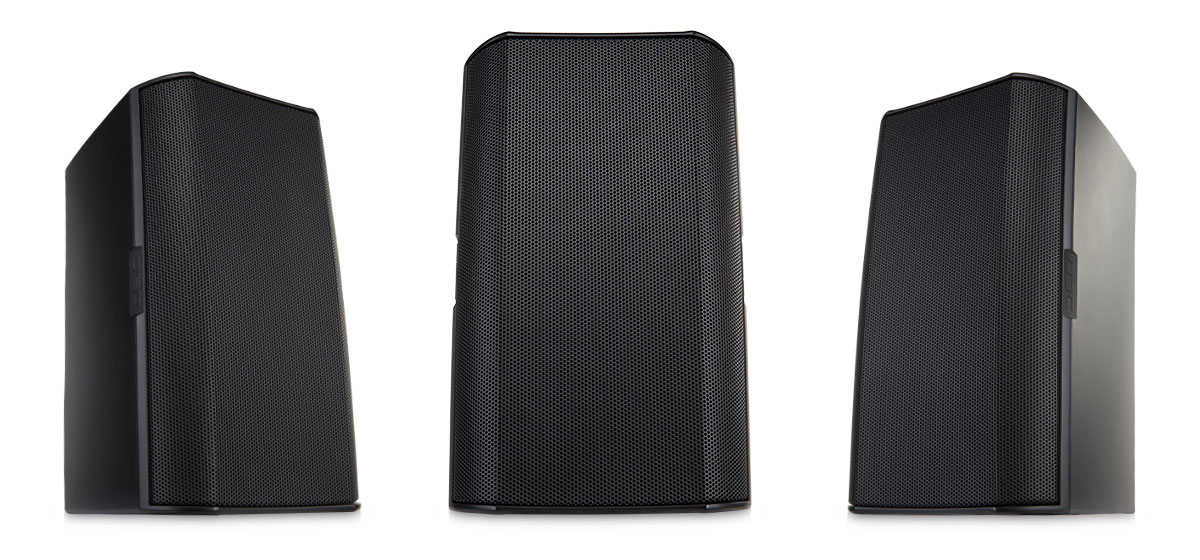

Surface Mount Speakers: AD-S6T
- 6.5 inch weather treated woofer; 1 inch silk dome tweeter
- 105° conical DMT coverage
- Maximum peak SPL 116 dB (8 ohm bypass)
- Directivity Matched Transition (DMT) ensures smooth, uniform frequency response over the coverage area
- X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced Intrinsic Correction voicings available via Q-SYS
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
Big Base: AD-S112sw 12-inch Subwoofer
- 12-inch weather treated woofer
- TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
- Optional M10 Kit-C for additional installation versatility
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Available in black (RAL 9011)
- Complete EASE, CF2, CAD, and BIM information available online
Pendant Mount Speakers
AcousticDesign Series pendant-mount loudspeakers are two-way loudspeakers ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70 / 100 V or 16 Ω bypass configurations.
The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant applications, the AcousticDesign™ Series allows integrators seamless transitions within blended installations.

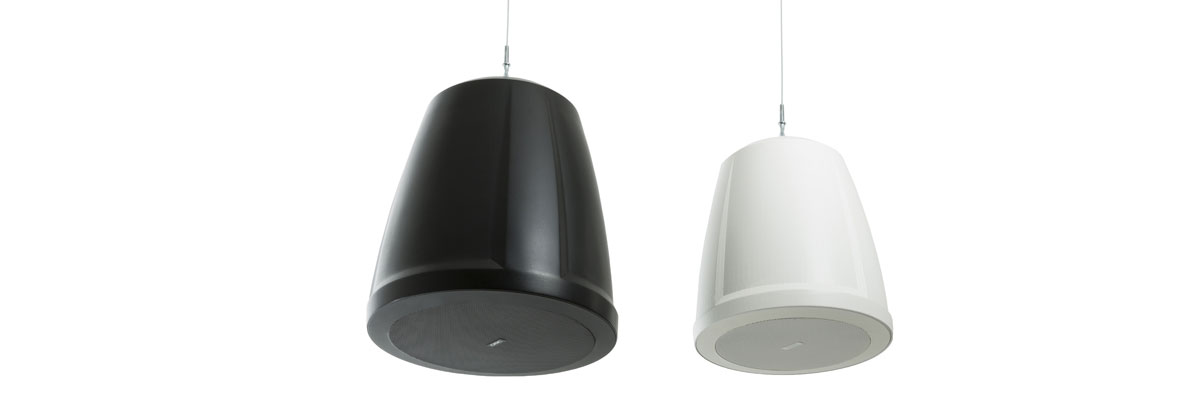

PAV’s Favorite Pendant Mount Speakers: AD-P6T
The AcousticDesign AD-P6T is a 6.5-inch two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- Directivity Matched Transition (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
Column Surface Mount
The all-new AcousticDesign Series column surface-mount loudspeakers, available in 4-driver, 8-driver, and 16-driver models, are high-quality systems ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
AcousticCoverage Series: In-Ceiling Speakers
AcousticCoverage is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical paging or BGM class products. Achieving remarkable performance for the cost, AcousticCoverage is ideally suited for wide area deployments such as office buildings, healthcare facilities, transportation terminals, and other cost sensitive installations.
PAV’s Favorite: AC-C8T
- High quality components provide exceptional clarity through the critical voice range.
- Improved musicality often not seen in typical background music products.
- Ported baffle for increased low frequency extension down to 52 Hz.
- Low saturation 70/100V transformers with 8 ohm bypass.
- Intrinsic Correction voicings available via Q-SYS Platform.
- Complete EASE, CF2, CAD, & BIM information available online.
Surface Mount: AC-S6T Insert
- High quality transducers provide exceptional clarity through the critical voice range.
- Improved musicality often not seen in typical Background Music products.
- Ported baffle for increased low frequency extension down to 70 Hz.
- 4-pole Euroblock connector eases system wiring.
- Intrinsic Correction voicings available via Q-SYS Platform.
- Available in black (RAL 9011) or white (RAL 9010).
- Complete EASE, CAD & BIM information available online.
Learn more about Commercial Audio Installation Environments by Performance AV Click Here
